A Step-by-Step Guide on the Production and Processing of Bitumen



A Step-by-Step Guide on the Production and Processing of Bitumen

Bitumen, also known as asphalt, is a crucial component in the construction industry, utilized in road paving, roofing, and waterproofing. Bitumen is predominately acquired by vacuum distillation of crude oil or blending of the crude oil depending on the specific application. Its production involves several intricate processes aimed at refining crude oil into the desired bitumen product. Bitumen is refined to change its physical properties in order to meet specific requirements. Crude oils used in the manufacturing process can define the properties of the bitumen that produced. Hence, choosing the quality crude oil assist in the production of quality bitumen. Based on the crude source(s) and refinement abilities accessible within a refinery, there are numerous processing techniques available to produce bitumen. Most of the time combination of processing methods takes place.

In this comprehensive guide, we'll walk you through each step of bitumen production and processing, equipping you with valuable insights into this essential industrial process.

1. Crude Oil Analysis and Selection

Before delving into bitumen production, it's crucial to analyse and select the appropriate crude oil feedstock. Crude oil comes in various types, each with its unique composition and properties. Oil sands, oil shale, and shale oil are among the primary sources of crude oil for bitumen production. Oil sands contain bitumen in a semi-solid form, requiring specialized extraction techniques. Oil shale refers to sedimentary rock containing kerogen, which can be processed into shale oil through pyrolysis. The selection process involves assessing the composition, viscosity, sulphur content, and other characteristics to ensure optimal bitumen quality.

2. Distillation

The first step in bitumen production involves distillation, a process aimed at separating crude oil into its various components based on their boiling points. During distillation, crude oil is heated in a distillation tower, allowing lighter hydrocarbons such as gasoline and diesel to vaporize and rise to the top, while heavier fractions like bitumen remain at the bottom. Distillation serves as the initial purification step, laying the foundation for further processing.

   Image 1: The Image represents the fractional distillation of crude oil.



3. Air Rectification

Air rectification, also known as fractional distillation, further refines the crude oil fractions obtained from distillation. In this process, the vapours from distillation are passed through a series of fractionating columns, where they undergo multiple condensation and vaporization cycles. This results in the separation of different hydrocarbon fractions based on their molecular weights and boiling points. Air rectification enhances the purity and quality of the bitumen feedstock, ensuring consistent performance in downstream applications.

4. Solvent Deasphalting

Solvent deasphalting is a crucial step in bitumen processing, aimed at removing asphaltene and other high molecular weight components from the crude oil fractions. In this process, the bitumen feedstock is mixed with a solvent such as propane or butane at high temperatures and pressures. The solvent selectively dissolves the asphaltene, leaving behind a deasphalted oil rich in lighter hydrocarbons. Solvent deasphalting improves the viscosity and rheological properties of the bitumen, making it suitable for various applications such as road paving and roofing.

5. Vacuum Distillation

Vacuum distillation of thermal cracked residuum involves further refining the heavy fractions obtained from solvent deasphalting. In this process, the deasphalted oil is subjected to vacuum distillation under reduced pressure and elevated temperatures. This allows for the separation of residual bitumen from the heavier components such as tar and pitch. Vacuum distillation improves the purity and stability of the bitumen product, enhancing its performance and durability in end-use applications.

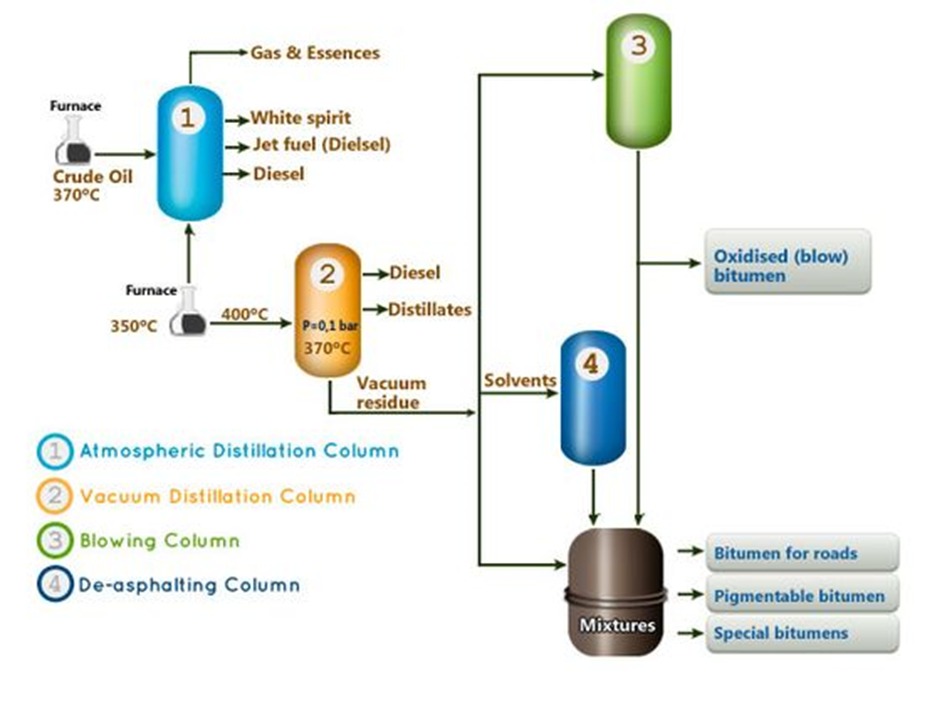

                            Image 2: The image represents the production process of bitumen.

6. Oxidation

Oxidation is a specialized process used to modify the chemical properties of bitumen, enhancing its adhesion, durability, and weather resistance. During oxidation, air or oxygen is bubbled through the bitumen at elevated temperatures, causing oxidation reactions to occur. This results in the formation of polar functional groups such as carbonyl and hydroxyl, which improve the bonding characteristics of the bitumen. Oxidized bitumen exhibits enhanced stiffness, cohesion, and resistance to aging, making it ideal for high-performance applications such as asphalt pavements and waterproofing membranes.

7. Other Processes

In addition to the core processes mentioned above, bitumen production and processing may involve various auxiliary processes such as polymer modification, blending, and emulsification. Polymer modification enhances the properties of bitumen by incorporating polymers such as styrene-butadiene-styrene (SBS) or ethylene-vinyl acetate (EVA), imparting superior elasticity and fatigue resistance. Bitumen blending allows for the customization of bitumen properties to meet specific performance requirements, while emulsification facilitates the use of bitumen in cold mix applications such as chip sealing and tack coating.

8. Bitumen Blending

Bitumen blending is a critical stage in the production process, where different bitumen grades and additives are mixed to achieve the desired performance characteristics. Blending may involve combining various bitumen feedstocks with differing viscosities, penetration grades, and temperature susceptibilities to meet specific application requirements. Additives such as polymers, antioxidants, and rejuvenators may also be incorporated to enhance the durability, flexibility, and aging resistance of the final product. Bitumen blending ensures consistent quality and performance, enabling the production of tailor-made bitumen solutions for diverse construction projects.

Conclusion

In conclusion, bitumen production and processing involve a series of intricate steps aimed at refining crude oil into a versatile and high-performance material. From crude oil analysis and selection to distillation, solvent deasphalting, and oxidation, each stage plays a crucial role in shaping the properties and quality of the final bitumen product. By understanding the intricacies of bitumen production, you can gain valuable insights into its application in various construction projects, contributing to the development of sustainable and resilient infrastructure systems.
